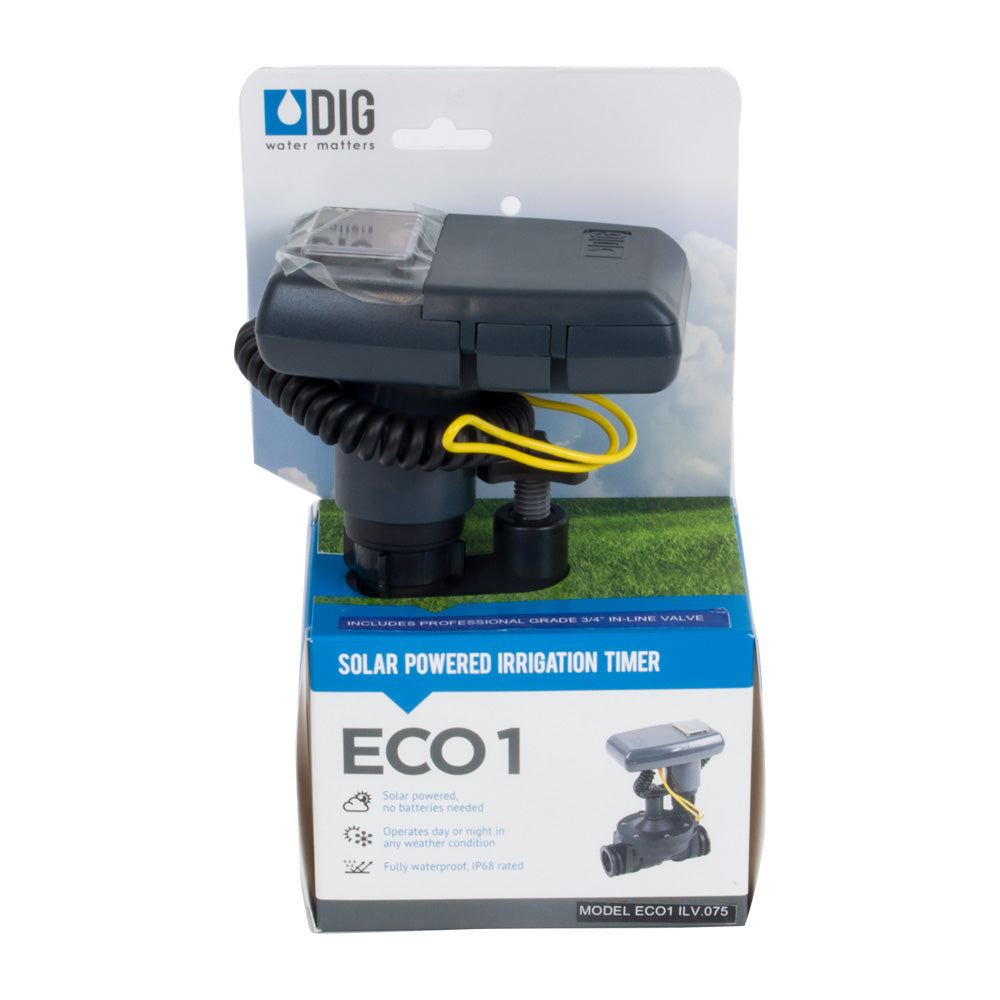

Ambient Light Powered Controller with 3/4" In-line Valve

DIG's ECO1™ILV is an advanced single-station ambient-light-powered (solar) irrigation controller mounted on a 3/4" in-line valve for use with drip irrigation or sprinkler systems. Power is derived via a patented, time-tested internal photovoltaic module and microelectronic energy management system that is fueled by ambient light (solar). This provides power to the controller through the day anytime, anywhere and in any weather.

The controller uses features that include five start times per day, watering durations of up to 5 hours and 59 minutes, Manual Run, Monthly Budget, Rain Off with restart up to 99 days, System Off and Irrigation Off for any month of the year. It also has additional features that include daily watering restrictions that can be used on any watering event that requires curbing by cites and municipalities.
  • More information at digcorp.com (opens in new window)
    • Model
    ECO1ILV.075

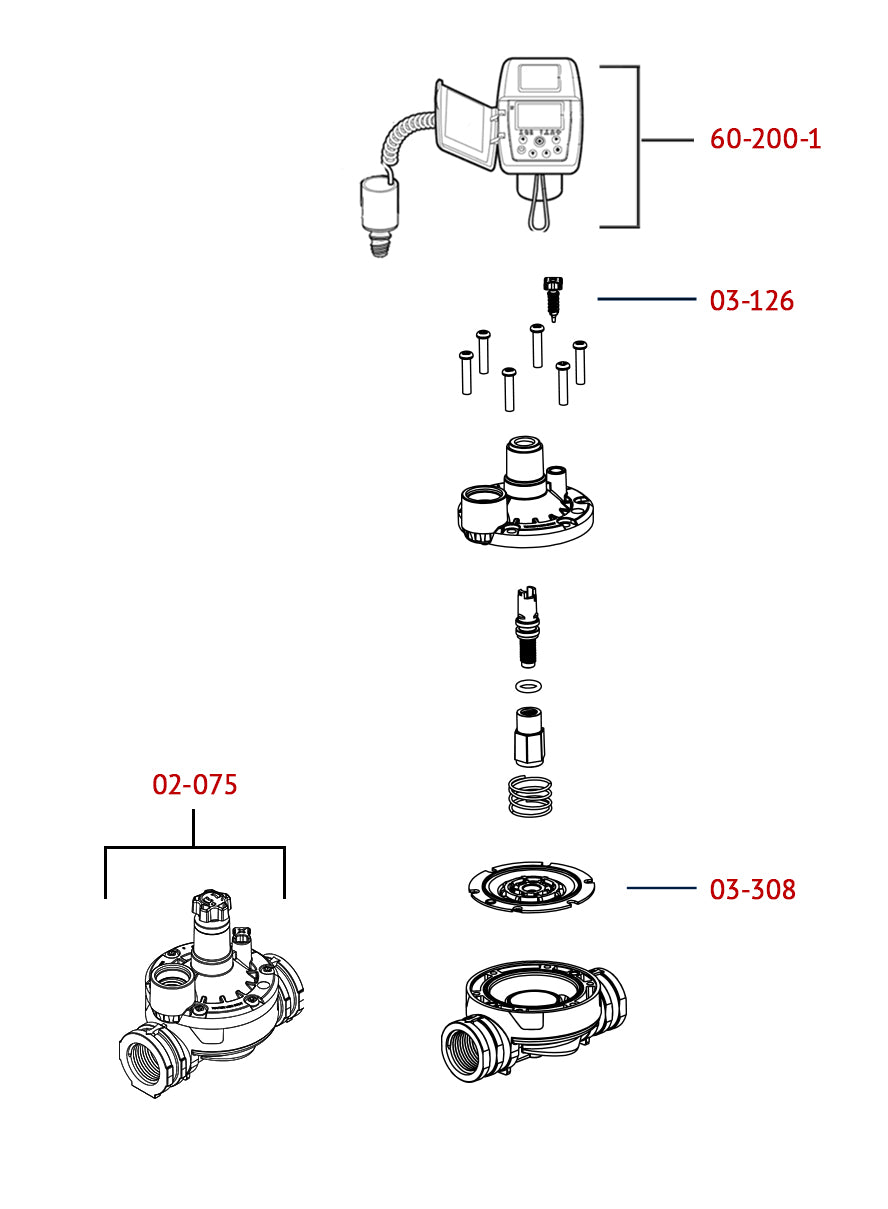

    Diagram

    Eco1 controller drawing73

    ECO1ILV.075 Replacement Parts

    SKU Image Name Price QTY
    60-200-1 ECO1 Controller with Solenoid ECO1 Controller with Solenoid $77.17
    03-126 External bleed screw External bleed screw $0.64
    03-308 Diaphram for 3/4" Valve Diaphram for 3/4" Valve $10.00
    02-075 Complete 3/4" Inline Valve with external bleed screw Complete 3/4" Inline Valve with external bleed screw $33.60
    D49 Male Adapter, (3/4" MHT X 3/4" MPT) Male Adapter, (3/4" MHT X 3/4" MPT) $1.20
    16-012 Female Swivel Adapter, (3/4" FHT X 3/4" MPT) Female Swivel Adapter, (3/4" FHT X 3/4" MPT) $1.51
