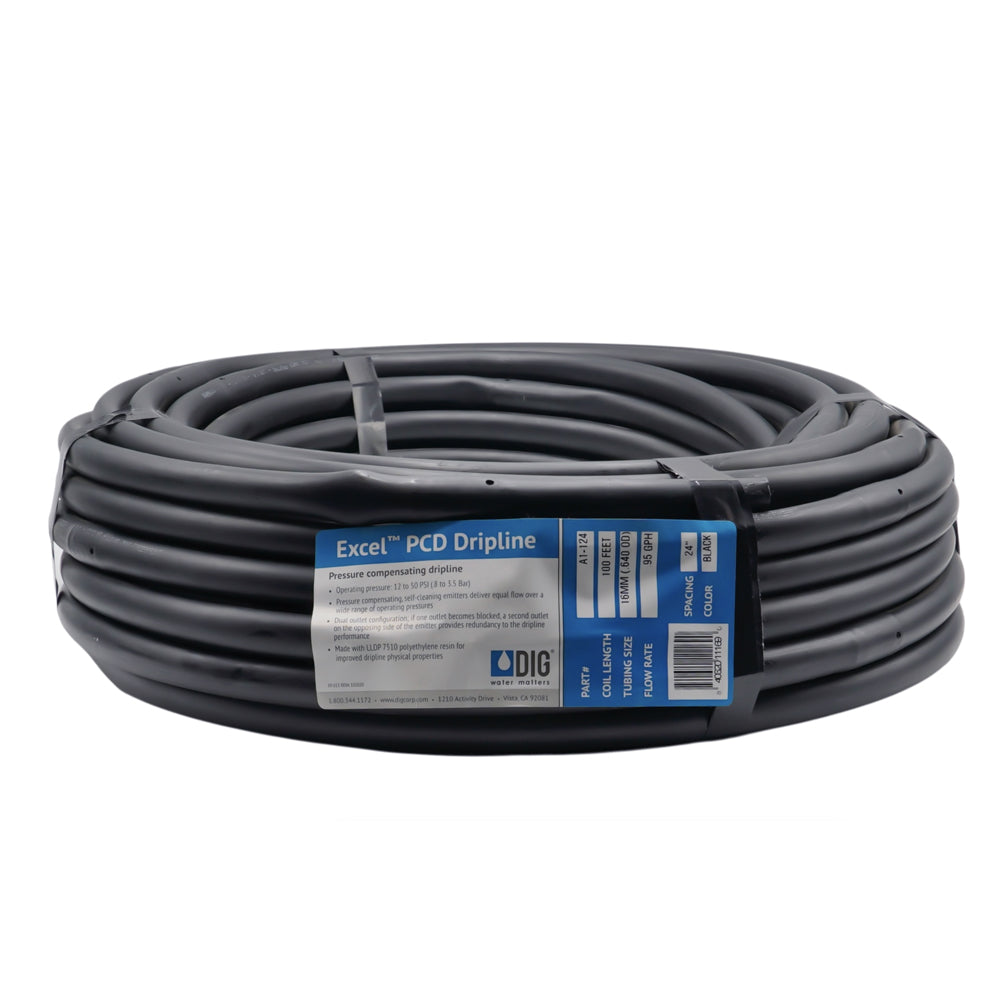

EXCEL SERIES 100’, ½” (16 mm) .550” ID X .640" OD PC DRIPLINE WITH 24" SPACING, .95 GPH, BLACK

Limited stock available
List price: $35.02
50% off at $17.51

DIG Excel™ PCD, Pressure Compensating, Dual Outlet 1/2″ (16 mm), .550 ID X .640 OD Dripline with .95 GPH per outlet every 24” is a dependable, durable, and precise dripline with dual outlets on each emitter, emitting a uniform amount of water to each plant along the line regardless of elevation and pressure fluctuation. If one drip emitter outlet becomes blocked, a second outlet on the opposing side of the emitter provides redundancy to the emitter performance. Excel™ PCD drip line drip emitters have floating diaphragms that regulate and maintain a consistent flow rate at variable inlet pressures, ranging from 12 to 50 PSI for a wide range of demanding conditions.

features
• Made of premium low-density polyethylene resins with UV protection and large, tough cylindrical drip emitters.
• Offers a combination of outstanding environmental stress-cracking resistance and burst strength for a wide range of irrigation applications.
• The flow-regulated, self-flushing inline drip emitters deliver equal flow at a wide range of operating pressures.
• Flow uniformity regardless of operating pressure and variation along the line.
• The drip emitter and diaphragm are self-contained units that molded into the interior wall of the tubing at 24” spacing.
• Dual outlet configuration: if one outlet becomes blocked, a second outlet on the opposing side of each drip emitter along the line provides redundancy to the dripline’s performance.
• Turbulent flow through a large labyrinth water passage helps reduce clogging.
• Resistant to chemicals and fertilizers.
• Flexible for easy installation
• Use with DIG’s .630″ OD compression fittings with green color inserts and universal NUTLOC™ fittings.

Specifications
• Flow rates: .95 GPH (3.6 L/H)
• Operating pressure: 12-50 PSI (0.8-3.5 BAR)
• Dripline color: black
• Materials: Low-density polyethylene resin
• Sizes: ½” (16 mm) .550" ID x .640" OD (14.1 mm ID x 16.2 mm OD)
• Spacing: 24” (60 cm)
• Lengths: 100’ (30 m)
• Minimum bending radius: 1’ (.3 m)
• Filter requirement: minimum of 150 mesh
