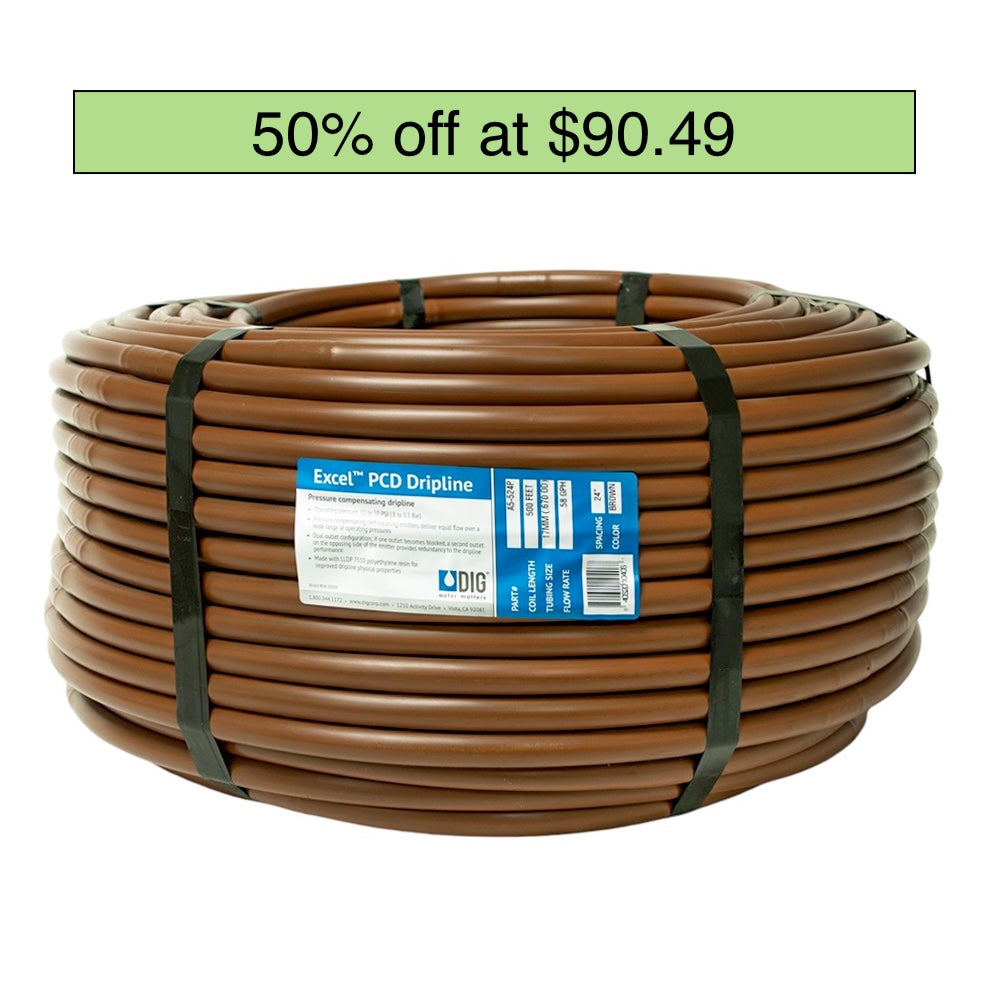

EXCEL SERIES 17MM PC DRIPLINE, 500' ROLL, 24" SPACING, .58 GPH, .670" OD, BROWN

Limited stock available
List price: $180.97
50% off at $90.49

DIG Excel™ PCD, Pressure Compensating, Dual Outlet 1/2″ (17 mm), .570 ID X .670 OD Dripline with .58 GPH per outlet every 24” is a dependable, durable, and precise dripline with dual outlets on each emitter, emitting a uniform amount of water to each plant along the line regardless of elevation and pressure fluctuation. If one drip emitter outlet becomes blocked, a second outlet on the opposing side of the emitter provides redundancy to the emitter performance. Excel™ PCD drip line drip emitters have floating diaphragms that regulate and maintain a consistent flow rate at variable inlet pressures, ranging from 12 to 50 PSI for a wide range of demanding conditions.

    features
  • Made of premium low-density polyethylene resins with UV protection and large, tough cylindrical drip emitters.
  • Offers a combination of outstanding environmental stress-cracking resistance and burst strength for a wide range of irrigation applications.
  • The flow-regulated, self-flushing inline drip emitters deliver equal flow at a wide range of operating pressures.
  • Flow uniformity regardless of operating pressure and variation along the line.
  • The drip emitter and diaphragm are self-contained units that molded into the interior wall of the tubing at 24” spacing.
  • Dual outlet configuration: if one outlet becomes blocked, a second outlet on the opposing side of each drip emitter along the line provides redundancy to the dripline’s performance.
  • Turbulent flow through a large labyrinth water passage helps reduce clogging.
  • Resistant to chemicals and fertilizers.
  • Flexible for easy installation
  • Use with DIG’s 17mm barbed fittings and universal NUTLOC™ fittings.

    Specifications
  • Flow rates: .58 GPH (2.2 L/H)
  • Operating pressure: 12-50 PSI (0.8-3.5 BAR)
  • Dripline color: black
  • Materials: Low-density polyethylene resin
  • Sizes: ½” (17 mm) .570" ID x .670" OD (14.5 mm ID x 17 mm OD)
  • Spacing: 24” (60 cm)
  • Lengths: 500’ (152 m)
  • Minimum bending radius: 1’ (.3 m)
  • Filter requirement: minimum of 150 mesh
Model
A5-524P
Price
$90.49
