Four-Outlet Drip Irrigation Manifolds

DIG's Four-Outlet Drip Irrigation Manifolds (1/2" female pipe thread) are high-flow emission devices used to retrofit an existing 1/2" sprinkler riser into a four-outlet drip irrigation system without altering or increasing the flow of the sprinkler system zone. The manifolds are pressure compensating heads operating at a pressure range of 10-50 PSI with an even flow rate of 6 GPH per each black outlet or 12 GPH per each red outlet. They allow installation flexibility when incorporated into a new system or as a part of a sprinkler system zone. The manifolds have four barbed outlets that are used with 1/4" micro tubing to deliver the water under the plant canopy using stakes to hold the micro tubing in place. They can also incorporate 1/4" drip line or drip emitters with a maximum flow of 6 GPH for black and 12 GPH for red to achieve good root zone coverage of individual plants or groups of plants.
  • More information at digcorp.com (opens in new window)
  • Variants

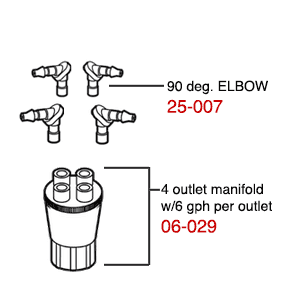

    Diagram

    90 deg elbow2

    Replacement Parts

    SKU Image Name Price QTY
    25-007 90 deg elbow 90 deg elbow $0.13
    06-029 4 Outlet manifold w/6 GPH per Outlet 4 Outlet manifold w/6 GPH per Outlet $2.24
