12-Outlet High Flow Drip Manifold Kit - no tubing

12-Outlet High Flow Drip Manifold Kit - no tubing

PC1204

$6.55
$6.55
Sale Sold out
DIG's Maverick™ High Flow 12-Outlet Drip Kits are used to retrofit an existing 1/2” sprinkler riser into a 12-outlet drip irrigation system without altering or increasing the flow of the sprinkler system zone. The 12-outlet drip manifold in the kits utilizes extremely accurate, pressure compensating individual and interchangeable nozzles to ensure equal flow from each outlet over a wide range of operating pressures from 10 to 80 PSI. The kits allow installation flexibility when incorporated into a new system. Each kit contains a 12-outlet manifold with 4 GPH pressure compensating drip emitters, 12 stakes, 8 caps, 12 bug plugs and 12 color-coded converter barbs to convert the 1/8” outlet into a 1/4” outlet for use with 1/4” micro tubing.

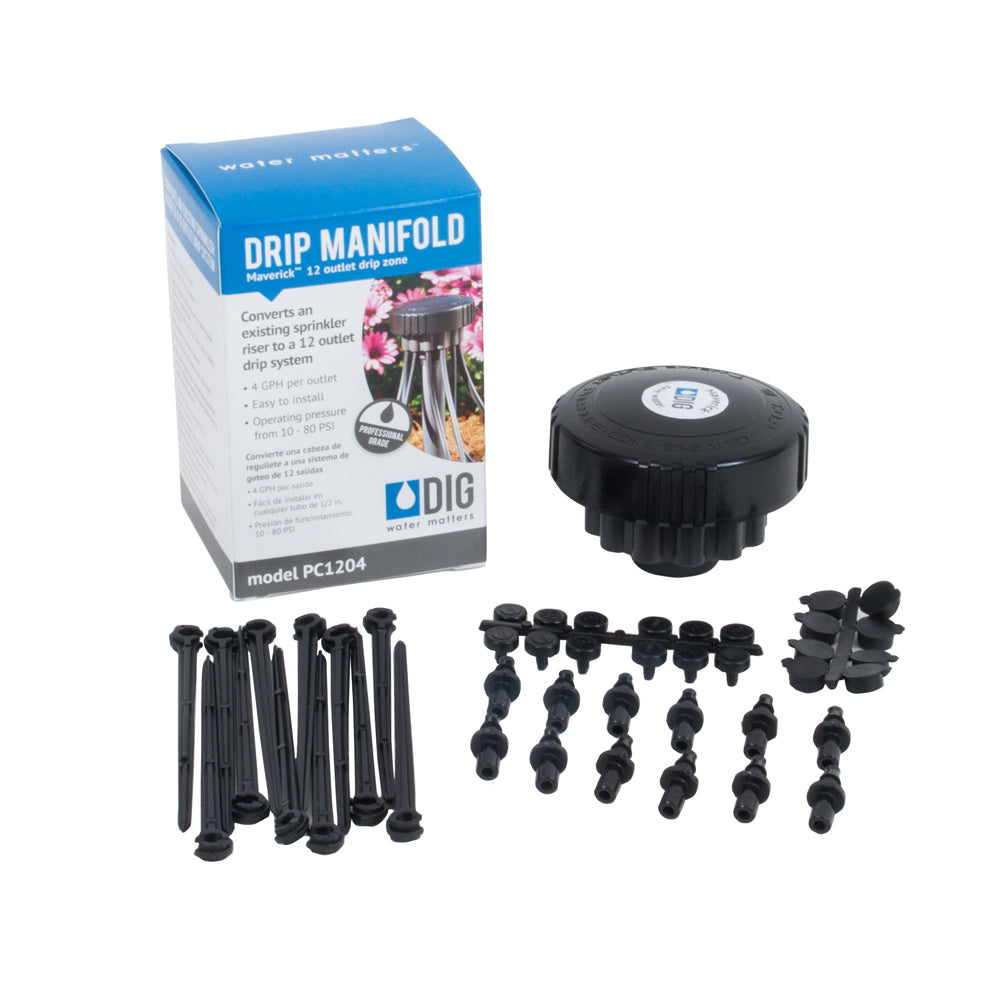

Kits Include:
(1) Maverick 12-Outlet Drip Manifold with 4 GPH per Zone
(8) Plugs to Close any Unused Zones
(12) Converter Barbs for 1/4" Micro Tubing
(12) Bug Plugs for 1/8" Micro Tubing
(12) Tubing Holder Stakes
(1) Instruction Manual
View full details

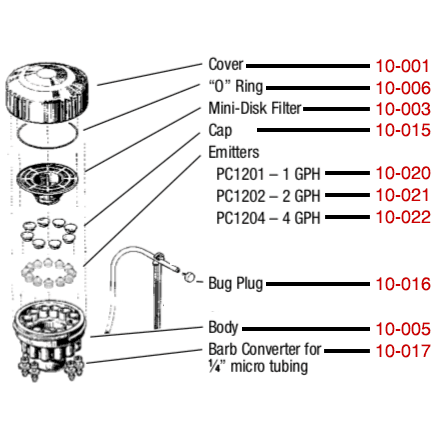

Replacement Parts

Double-click to zoom • Drag to pan • Scroll to zoom
Cover for the Maverick 12-Outlet Drip Manifold
10-001

Cover for the Maverick 12-Outlet Drip Manifold

$2.83
Please select a quantity greater than 0
"O" Ring for the Maverick 12-Outlet Drip Manifold
10-006

"O" Ring for the Maverick 12-Outlet Drip Manifold

$0.64
Please select a quantity greater than 0
Mini-Disk Filter for the Maverick 12-Outlet Drip Manifold
10-003

Mini-Disk Filter for the Maverick 12-Outlet Drip Manifold

$2.37
Please select a quantity greater than 0
Port Cap for unused emitter ports on the Maverick 12-Outlet Drip Manifold - Strip of 8
10-015

Port Cap for unused emitter ports on the Maverick 12-Outlet Drip Manifold - Strip of 8

$0.80
Please select a quantity greater than 0
0.6 GPH black emitter with "O" Ring for the Maverick 12-Outlet Drip Manifold
10-019

0.6 GPH black emitter with "O" Ring for the Maverick 12-Outlet Drip Manifold

$0.39
Please select a quantity greater than 0
1 GPH red emitter with "O" Ring for the Maverick 12-Outlet Drip Manifold
10-020

1 GPH red emitter with "O" Ring for the Maverick 12-Outlet Drip Manifold

$0.39
Please select a quantity greater than 0
2.2 GPH green emitter with "O" Ring for the Maverick 12-Outlet Drip Manifold
10-021

2.2 GPH green emitter with "O" Ring for the Maverick 12-Outlet Drip Manifold

$0.39
Please select a quantity greater than 0
3.3 GPH purple emitter with "O" Ring for the Maverick 12-Outlet Drip Manifold
10-022

3.3 GPH purple emitter with "O" Ring for the Maverick 12-Outlet Drip Manifold

$0.39
Please select a quantity greater than 0
Bug Plug Strip of 12
10-016

Bug Plug Strip of 12

$0.81
Please select a quantity greater than 0
Body for the Maverick 12-Outlet Drip Manifold
10-005

Body for the Maverick 12-Outlet Drip Manifold

$5.14
Please select a quantity greater than 0
Barb Converter for 1/4" Micro tubing
10-017

Barb Converter for 1/4" Micro tubing

$0.20
Please select a quantity greater than 0
