Ambient Light Powered Controller with 3/4" Anti-Siphon Valve

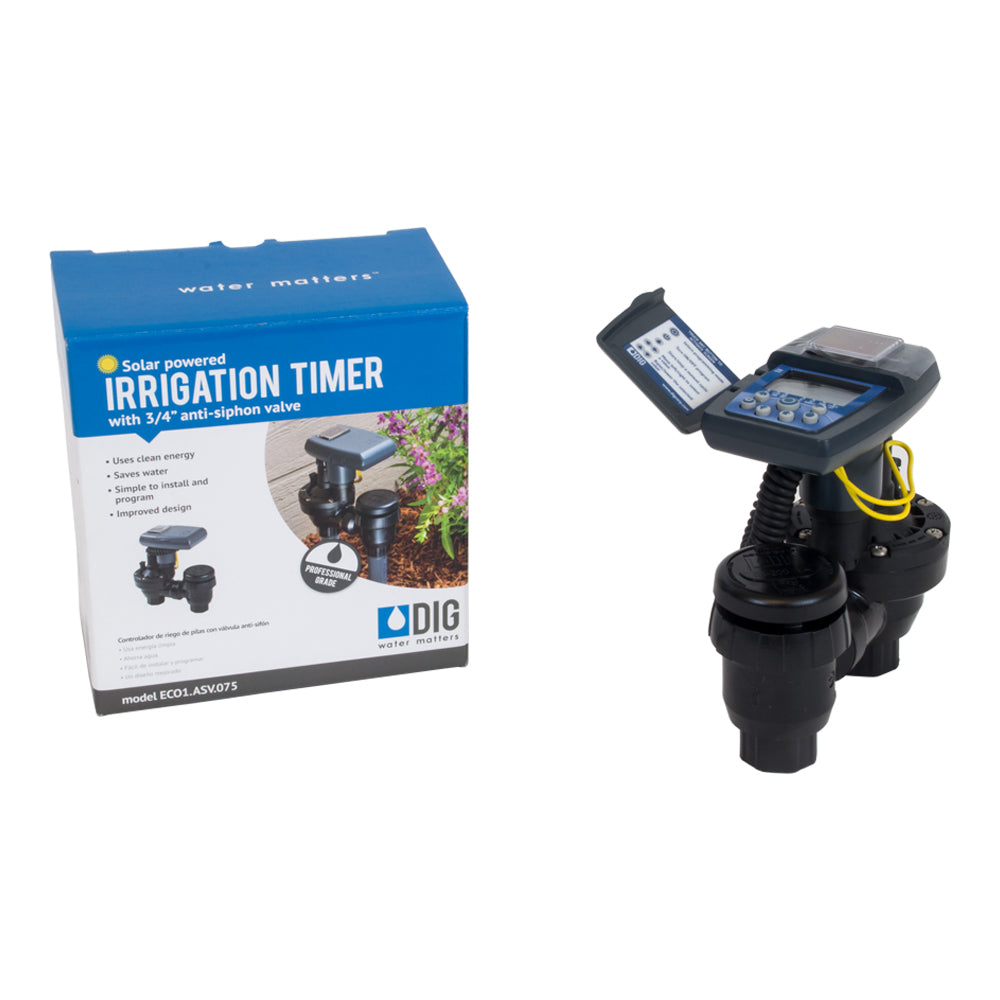

DIG's ECO1™ASV ambient-light-powered (solar) irrigation controller mounted on a 3/4” anti-siphon valve can be used with drip irrigation or sprinkler systems. The anti-siphon valve features flow control with internal and external bleed and is utilized to protect the household water supply from contamination. The controller’s power is derived via a patented, time-tested internal photovoltaic module and microelectronic energy management system that is fueled by ambient light (solar). This provides power to the controller through the day anytime, anywhere and in any weather.

The controller uses features that include five start times per day, durations of up to 5 hours and 59 minutes, Manual Run, Monthly Budget, Rain Off with restart in up to 99 days, System Off and Irrigation Off for any month of the year. It also has additional features that include daily watering restriction that can be used on any watering event that requires curbing by cites and municipalities.
  • More information at digcorp.com (opens in new window)
  • Model
    ECO1ASV.075

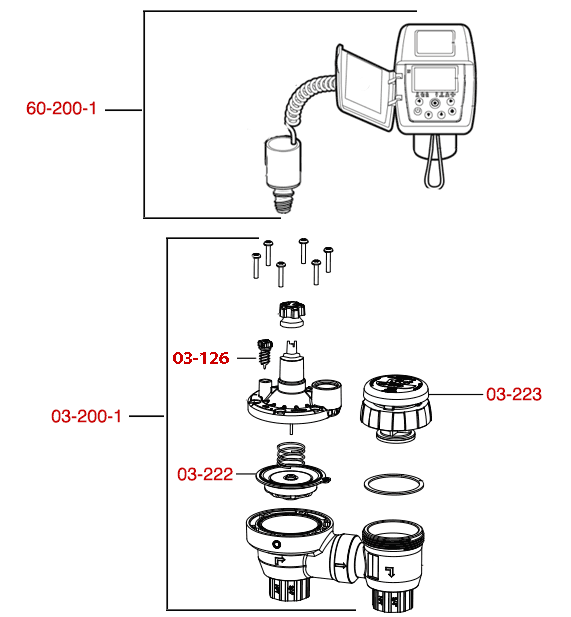

    Diagram

    Eco1asv

    ECO1ASV.075 Replacement Parts

    SKU Image Name Price QTY
    60-200-1 ECO1 Controller with Solenoid ECO1 Controller with Solenoid $77.17
    03-222 Anti-siphon diaphragm assembly Anti-siphon diaphragm assembly $5.71
    03-223 Air Vent Cap & Poppet assembly Air Vent Cap & Poppet assembly $5.05
    03-136 External bleed screw External bleed screw $0.58
    03-200-1 Complete Anti-Siphon Valve Complete Anti-Siphon Valve $30.98
