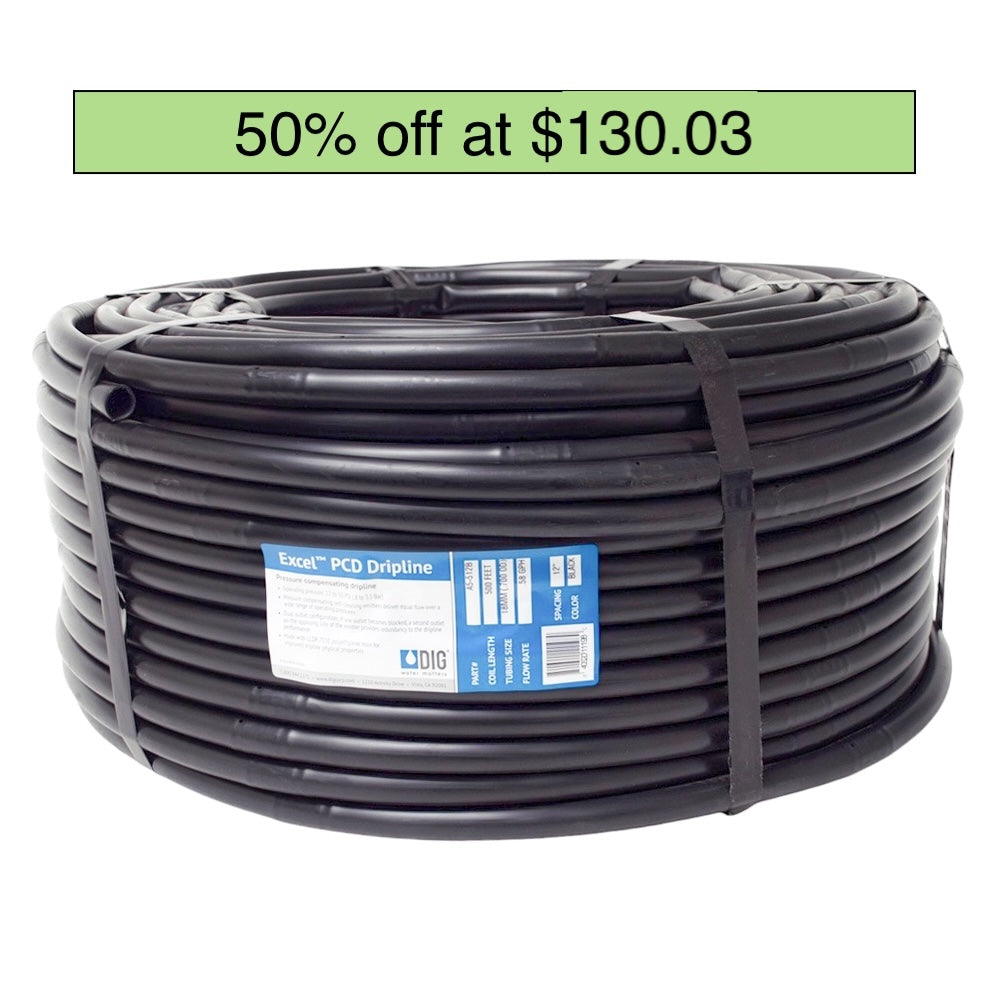

EXCEL SERIES 18MM PC DRIPLINE, 500' ROLL, 9" SPACING, .58 GPH, 700" OD, BLACK
Limited stock available
List price: $260.05
50% off at $130.03
DIG Excel™ PCD, Pressure Compensating, Dual Outlet ½”, .600” ID X .700” OD Dripline with .58 GPH per outlet every 9” is a dependable, durable, and precise dripline with dual outlets on each emitter, delivering a uniform amount of water to each plant along the line regardless of elevation and pressure fluctuation. If one drip emitter outlet becomes blocked, a second outlet on the opposing side of the emitter provides redundancy to the emitter performance. Excel™ PCD drip line drip emitters have floating diaphragms that regulate and maintain a consistent flow rate at variable inlet pressures, ranging from 12 to 50 PSI.
- Made of premium low-density polyethylene resins with UV protection and large, tough cylindrical drip emitters.
- Offers a combination of outstanding environmental stress-cracking resistance and burst strength for a wide range of irrigation applications.
- The flow-regulated, self-flushing inline drip emitters deliver equal flow at a wide range of operating pressures.
- The drip emitter and diaphragm are self-contained units that molded into the interior wall of the tubing at 9” spacing.
- Dual outlet configuration: if one outlet becomes blocked, a second outlet on the opposing side of each drip emitter along the line provides redundancy to the dripline’s performance.
- Turbulent flow through a large labyrinth water passage helps reduce clogging.
- Resistant to chemicals and fertilizers.
- Flexible for easy installation
- Use with DIG’s .700″ OD compression fittings with black color inserts and universal NUTLOC™ fittings.
- Flow rates: .58 GPH (2.2 L/H)
- Operating pressure: 12-50 PSI (0.8-3.5 BAR)
- Dripline color: black
- Materials: Low-density polyethylene resin
- Sizes: .600" ID x .700" OD (14.5 mm ID x 17.8 mm OD)
- Spacing: 9” (22 cm)
- Lengths: 500’ (152 m)
- Minimum bending radius: 1’ (.3 m)
- Filter requirement: minimum of 150 mesh
